2 Spindle 1NC Lathe

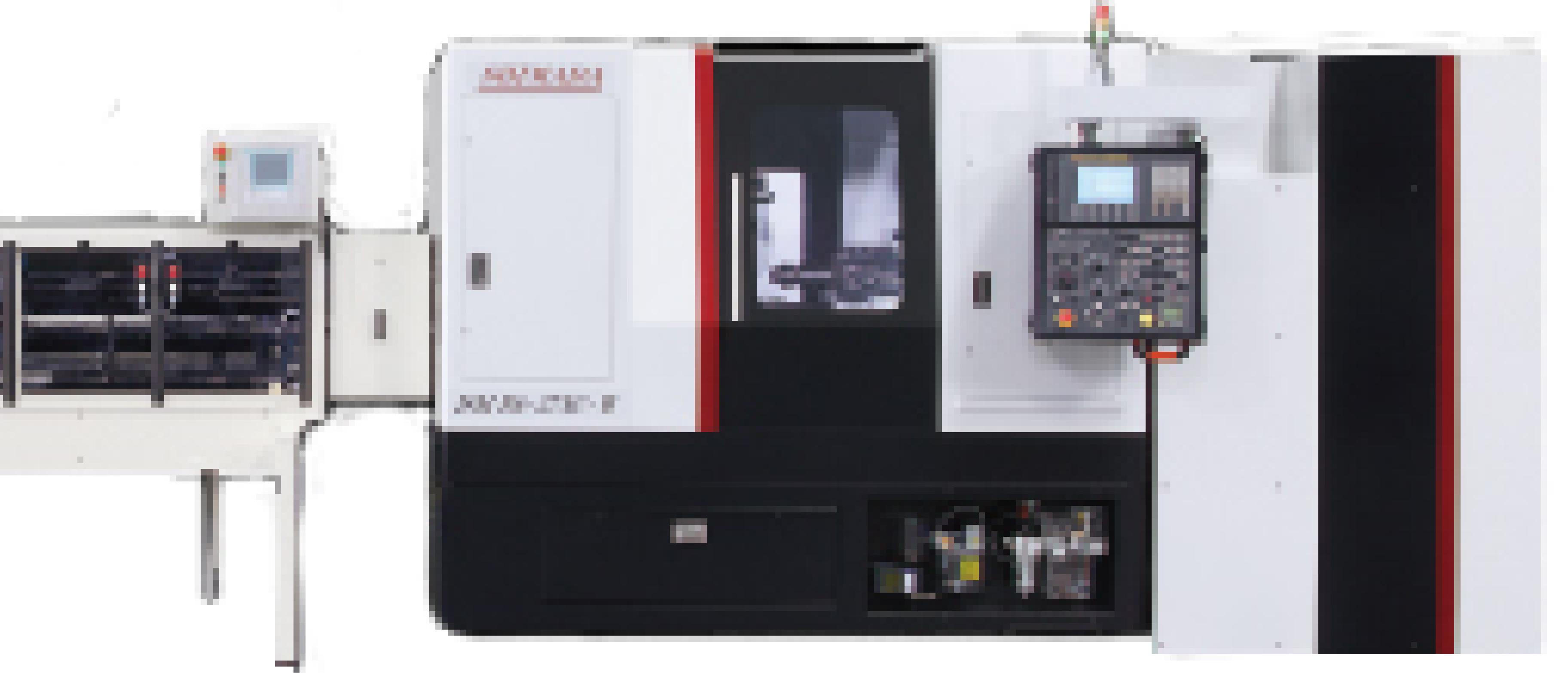

• 2SI-6/8



  "Zero" loading time. 2-Spindle / 1NC lathe, with chip-to-chip of only 2 ~ 2.5 seconds.
  One spindle is for Loading & Un-loading workpiece, the other spindle is for machining at one time. Detail



• 2SI-10



  The 2SI-10 is the best solution for machining big size workpiece that tends to require more and more long loading & unloading time. Detail

4 Spindle 2NC Lathe

•

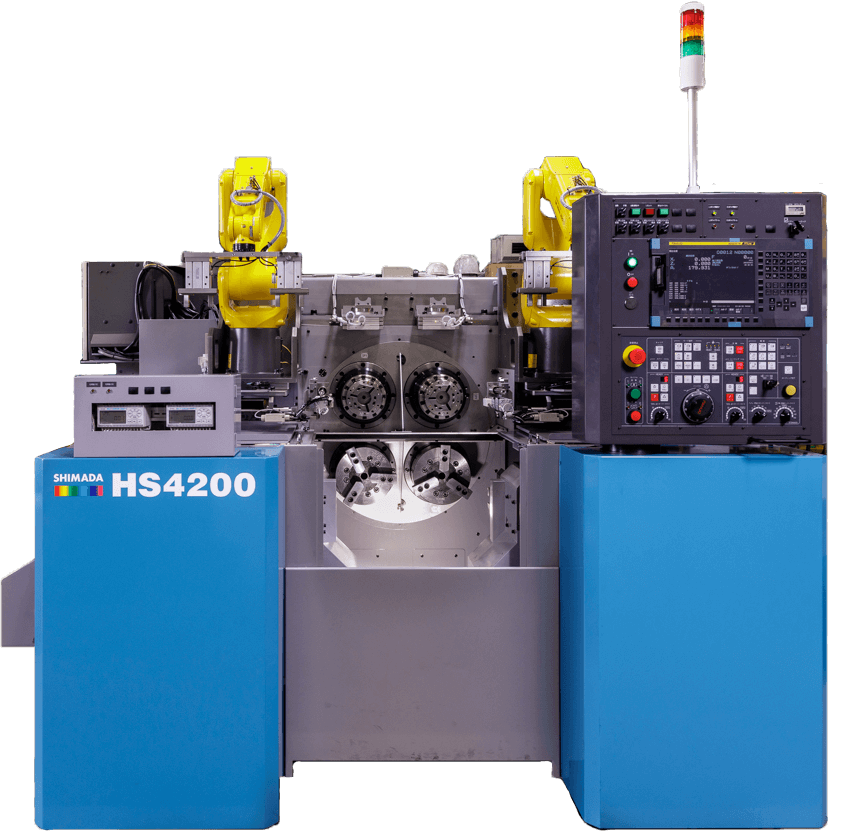

  HS4200



  8" Chuck size CNC 4 spindle + Twin turret machine
  2 spindles are simultaneously machining while the other 2 spindles are being loaded / unloaded partsDetail



•

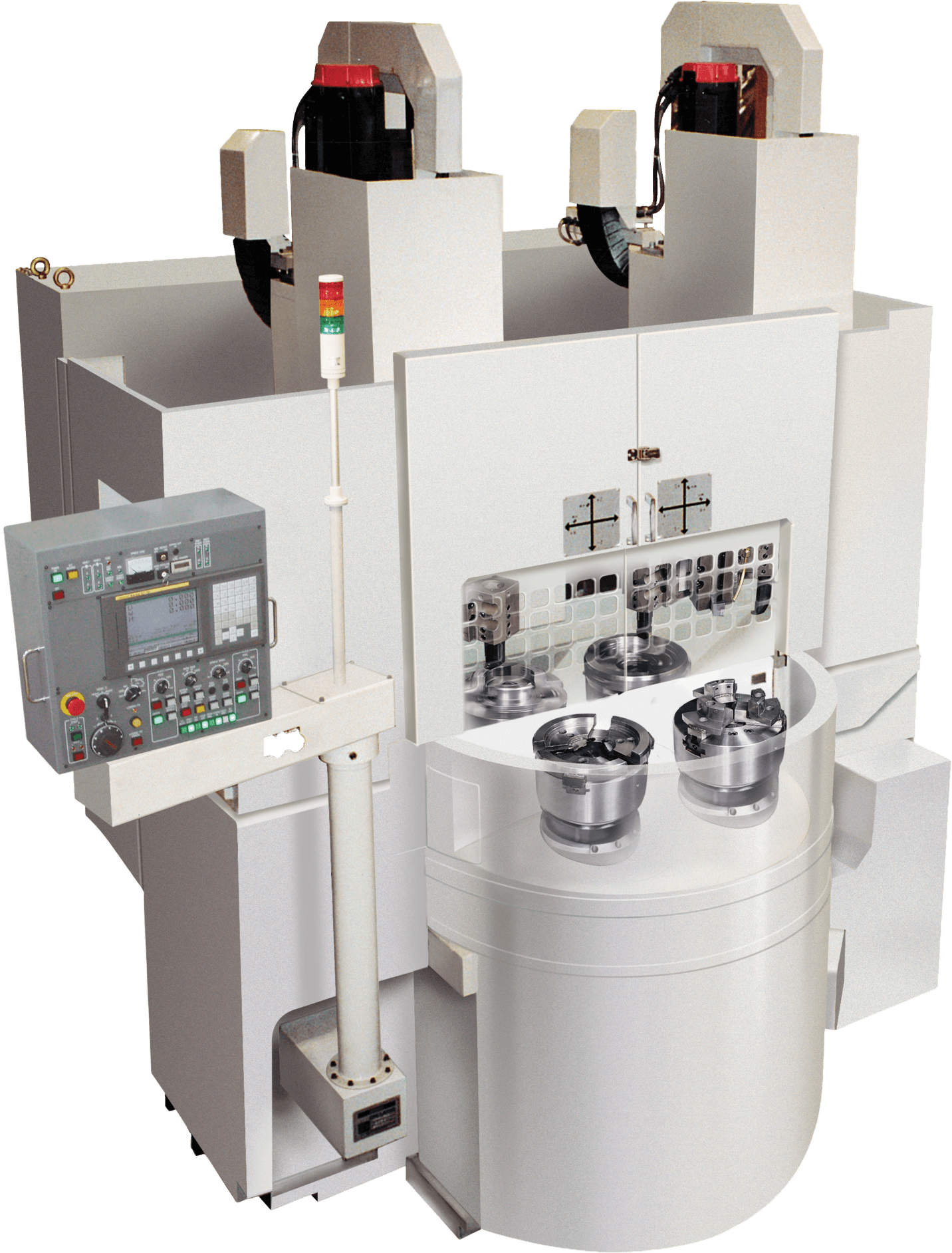

  VT4-350



  15" Chuck size CNC Vertical 4 spindle + Twin turret machine Detail



6 Spindle Multi Spindle Machine

• B6-16/27/32



  6 spindle screw machine bar type
  There are 3 models depends on bar stock size.
  B6-16: φ4-16(φ0.16-φ0.63")
  B6-27: φ10-27(φ0.4-φ1.06")
  B6-32: φ32 (-φ1.26")
  Bar feeder : Pietro Cucchi or IEMCA brands Detail

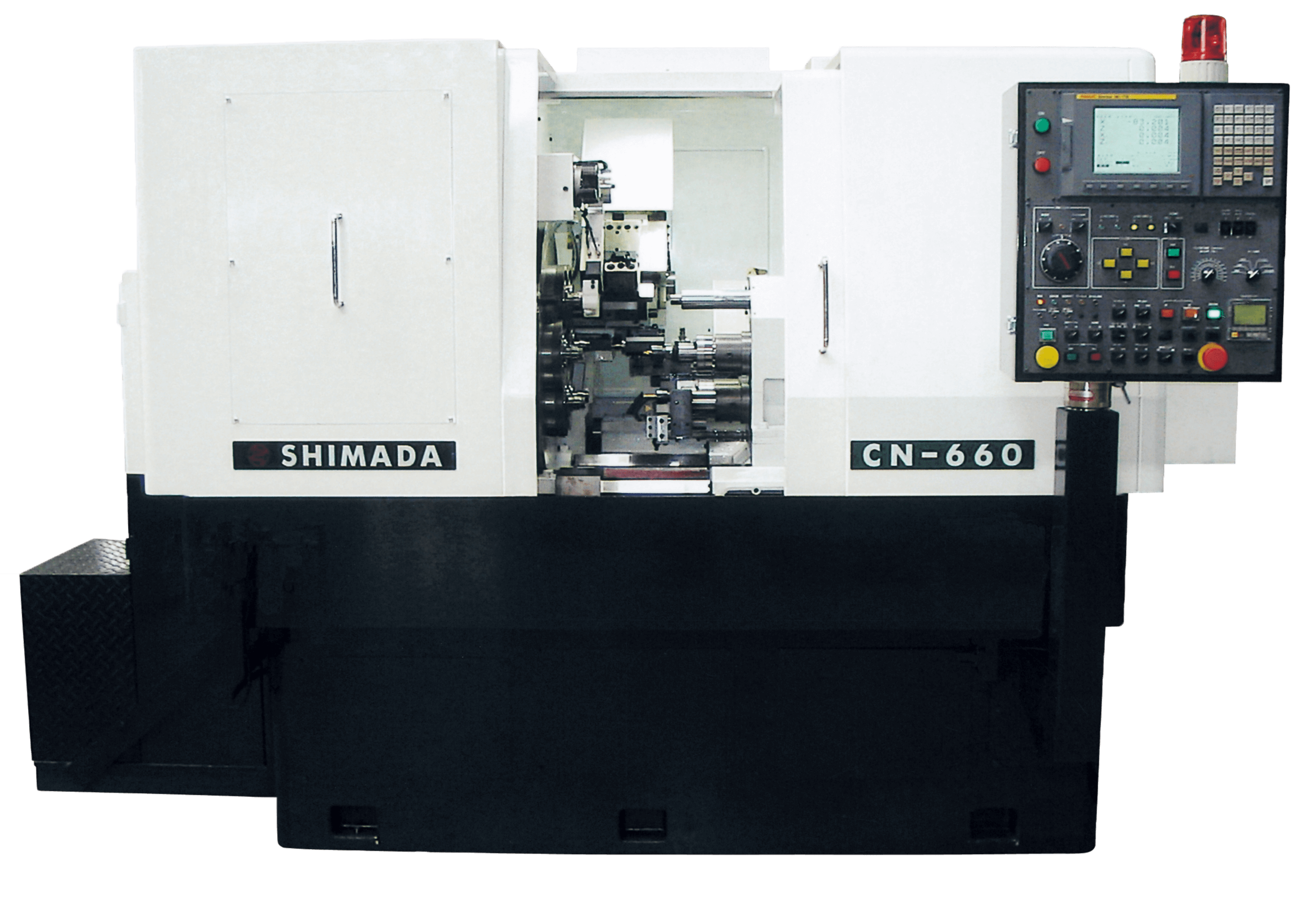

• CN660



  CNC Multi-Spindle Lathe (CNC 6 Spindle Automatic Lathe) developed for the first time in the world by SHIMADA Detail

  •
  •

• CN660-DSP (Dead Spindle)



  CNC 6 spindle automatic lathe attaching Dead Spindle with Robot or Auto-Loader for irregularly shaped workpiece Detail

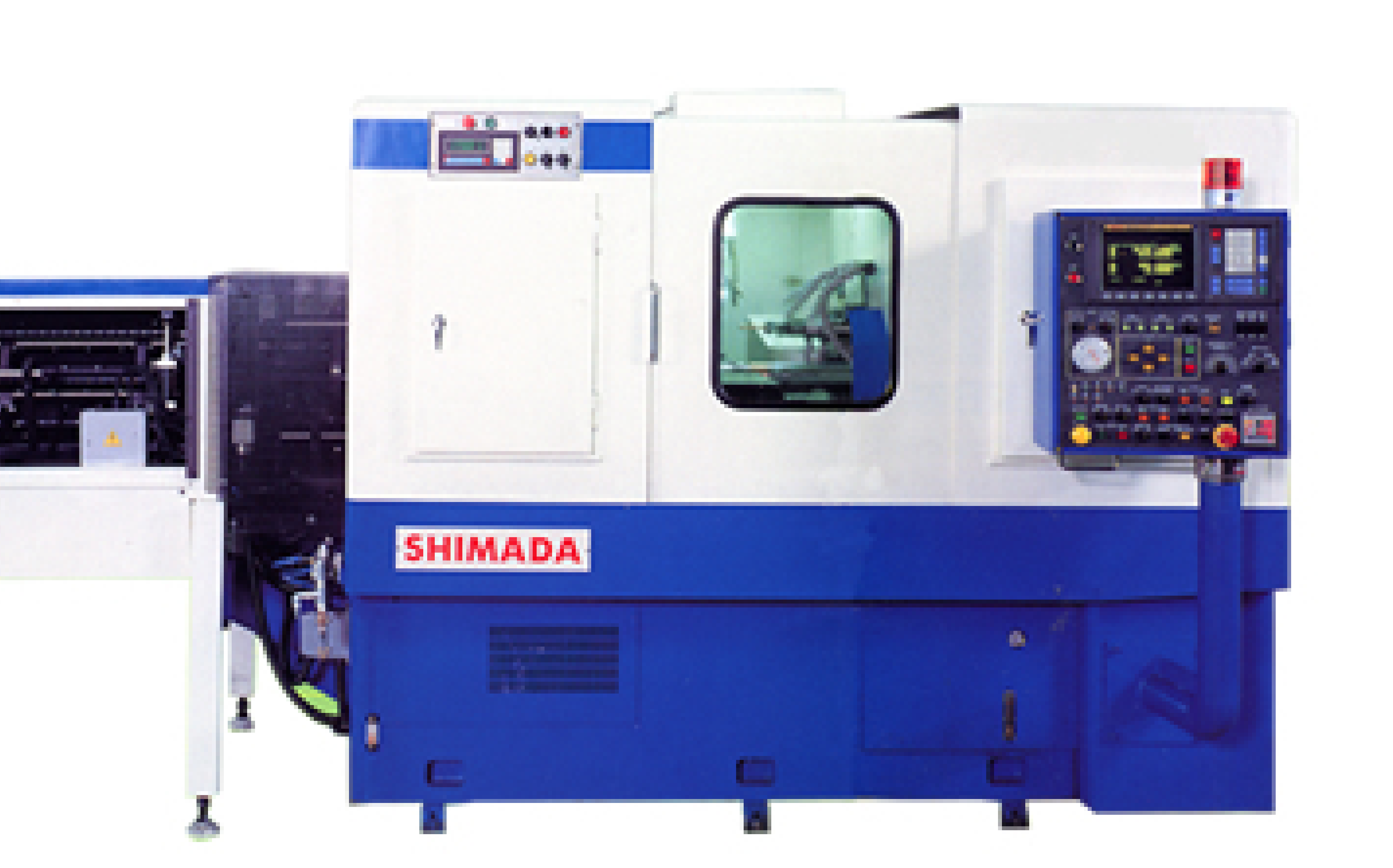

• SC-6E



  6 Spindle Automatic Lathe (Multi Spindle Screw Machine) that SHIMADA developed for the first time in Japan and improved for a long time.
  Without using cam realizes easy operation and wide range of usage. Detail

8 Spindle Multi Spindle Machine

• SS-8



  CNC 8 Spindle Automatic Lathe has 2 NC slides, which enables various machining methods such as 2piece / 1cycle(for two workpieces at one time)and Work reversing --- Front & Back sides simultaneous machining. Detail
